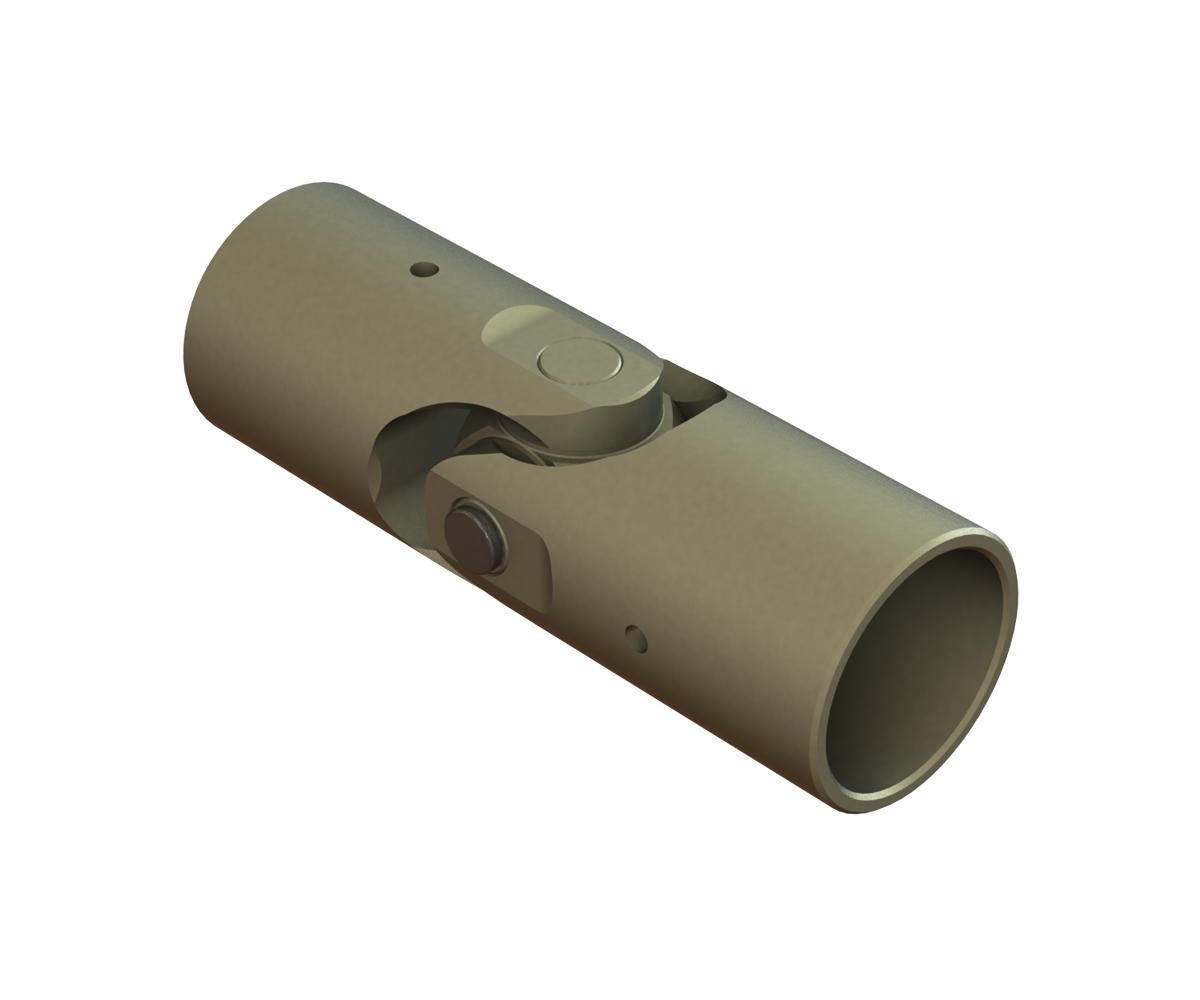

Military Standard Light Duty - Single Universal Joint MS20270B20
General Information
Military Standard Light Duty - Single Universal Joint
Joint Outside Diameter Nominal D (in)
1-1/8"
Product Specifications
Part Type
Single Universal Joint
Part Design
Military Standard Light Duty
Part Style
Pin & Block - Friction Bearing
Part Material
Alloy Steel

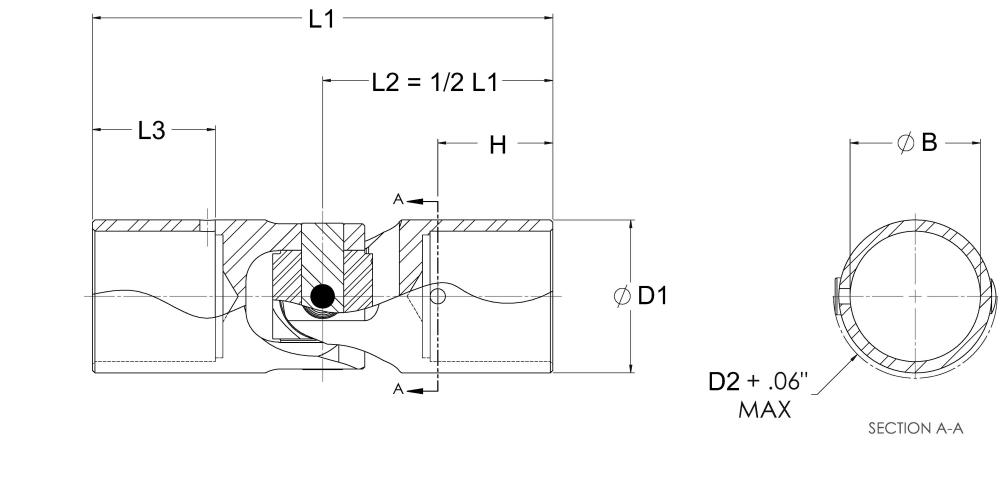

Dimensional Data
Joint Outside Diameter D (in)
Joint Outside Diameter D (mm)
1.245
31.6
Insp. Hole Location H (in)
Insp. Hole Location H (mm)
937.000 23.80
Overall Length L1 (in)
Overall Length L1 (mm)
3.750 95.25
Yoke Length L2 (in)
Yoke Length L2 (mm)
1.875
47.63
Hub Depth L3 (in)
Hub Depth L3 (mm)
1.187 30.15
Bore diameter B (in)
Bore diameter B (mm)
1.062 1.060
Bore Type
Bore
Performance Data
Ultimate Torque (in-lbf)
Ultimate Torque (Nm)
5000
565.00
Torque Rating (in-lbf)
Torque Rating (Nm)
750.0 84.7
Stall Torque (in-lbf)
Stall Torque (Nm)
2500 282.5
Axial Failure Load (lbf)
800.0
Axial Failure Load (n)
3559.0
Operating Angle
35
Additional Data
Weight (kg)
0.3
Weight (lb)
0.61
